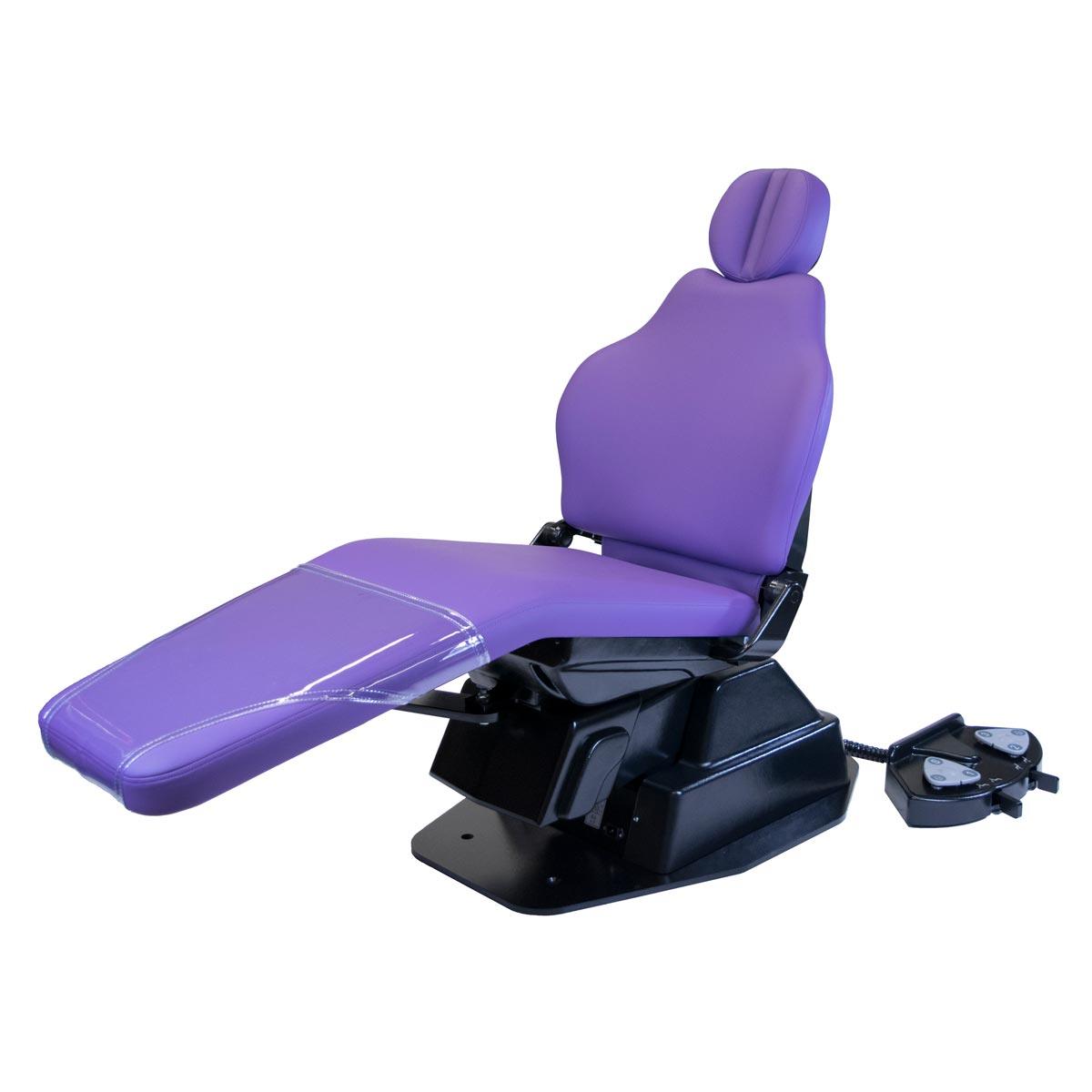

The M3000CB has the lowest starting height of the series, making it perfect for Pediatric Dentistry offices.

Standard Features:

  • All-steel frame construction
  • Ergonomically designed winged back
  • Low-voltage DC motor actuators
  • -- Motorized cantilever base with 14" vertical stroke
  • Contoured one-piece seat
  • Flip down patient arms
  • Integrated hand controls mounted on chair back
  • -- Three (3) operator designated pre-set positions
  • -- Auto “return to home” switch
  • Snap-on/Snap-off upholstery
  • Clear plastic foot protector cover
  • Choice of extendable headrest
  • Optional – Detachable full function foot control

Options:

  • Lever-release Armrest
  • Swivel base (41.5 degree rotation from center)

Customization Options

Putty colored frame
Cross Stitch Back and Seat/Toe Sections

Express your style in an almost limitless selection of colors and grains!

Quote Contact Information

Model # Part # Description
M3000CB 100-3300 Power Back, Cantilever Lift, Putty
M3000CB 100-3300B Power Back, Cantilever Lift, Black
Arm Assembly, Set 68-2200 Arm Assembly, Putty
WARNING: This product can expose you to chemicals including cumene, nickel compounds and wood dust, which are known to the state of California to cause cancer; di(2-ethylhexyl)phthalate, which is known to the state of California to cause cancer, developmental toxicity and male reproductive toxicity; and lead and lead compounds, which are known to the state of California to cause cancer, developmental toxicity, male reproductive toxicity, and female reproductive toxicity. For more information, go to www.P65Warnings.ca.gov.
SPECIFICATIONS & FEATURES M300XM3000FBM3000LCM3000CBM3010FBM3010LCM3010CBE530E535PB4000PB4001
● STANDARD FEATURE     ●● OPTIONAL FEATURE
Weight Capacity (lbs) 500 500 500 500 500 500 500 350 350 350 350
Minimum Seat Height
(At the highest point of seat frame)
25.5" 25.5" 22" 19.5" 25.5" 22" 19.5" 19" 19" 27.5" 27.5"
Maximum Seat Height
(At the highest point of seat frame)
25.5" 25.5" 30" 33" 27.5" 30" 33" 26" 26" 27.5" 27.5"
Base Plate Width 24.25" 24.25" 24.25" 24.25" 24.25" 24.25" 24.25" 20" 20" 26" 26"
Length 70.5" 70.5" 70.5" 71.5" 63.5" 63.5" 66.75" 58" 58" 76.5" 76.5"
Power Requirements (Amps) 10 10 10 10 10 10 10   8
# of Motorized Functions 1 1 2 2 1 2 2   1
220vAC Convertible         ●● ●●
Steel Frame Construction
Frame/Trim Colors (Putty or Black) Black Only
Headrest - Non Articulating ●● ●● ●● ●●
Headrest - Single Articulating ●● ●● ●● ●● ●● ●● ●● ●● ●●
Headrest - Dual Articulating
Choice of Standard Headrests
Arm Rests ●● ●● ●● ●● ●● ●● ●● N/A N/A
Programmable Foot Control
Programmable Foot Control - Detachable       ●●     ●●
Programmable Hand Control on Chair Back
Auto Return to Home
Safety Stop Feature
120vAC Electrical Outlet     ●● ●●
Base - Cantilever Style (14" Stroke)
Base - Vertical Column (7.9" Stroke)
Base - Manual Pump (7" Stroke)
Base - Electric Hydraulic (7.5" Stroke)
Seat Swivel (360 of Travel)
Seat Swivel (83 of Travel) ●● ●● ●● ●● ●● ●● ●●
Upholstery - Boltaflex Vinyl /Standard Foam
Upholstery - Ultraleather Pro™ ●● ●● ●● ●● ●● ●● ●● ●● ●●
Upholstery - Choice of Stitching Styles
Upholstery - Detachable
Memory Foam ●● ●● ●● ●● ●● ●● ●● ●● ●●
