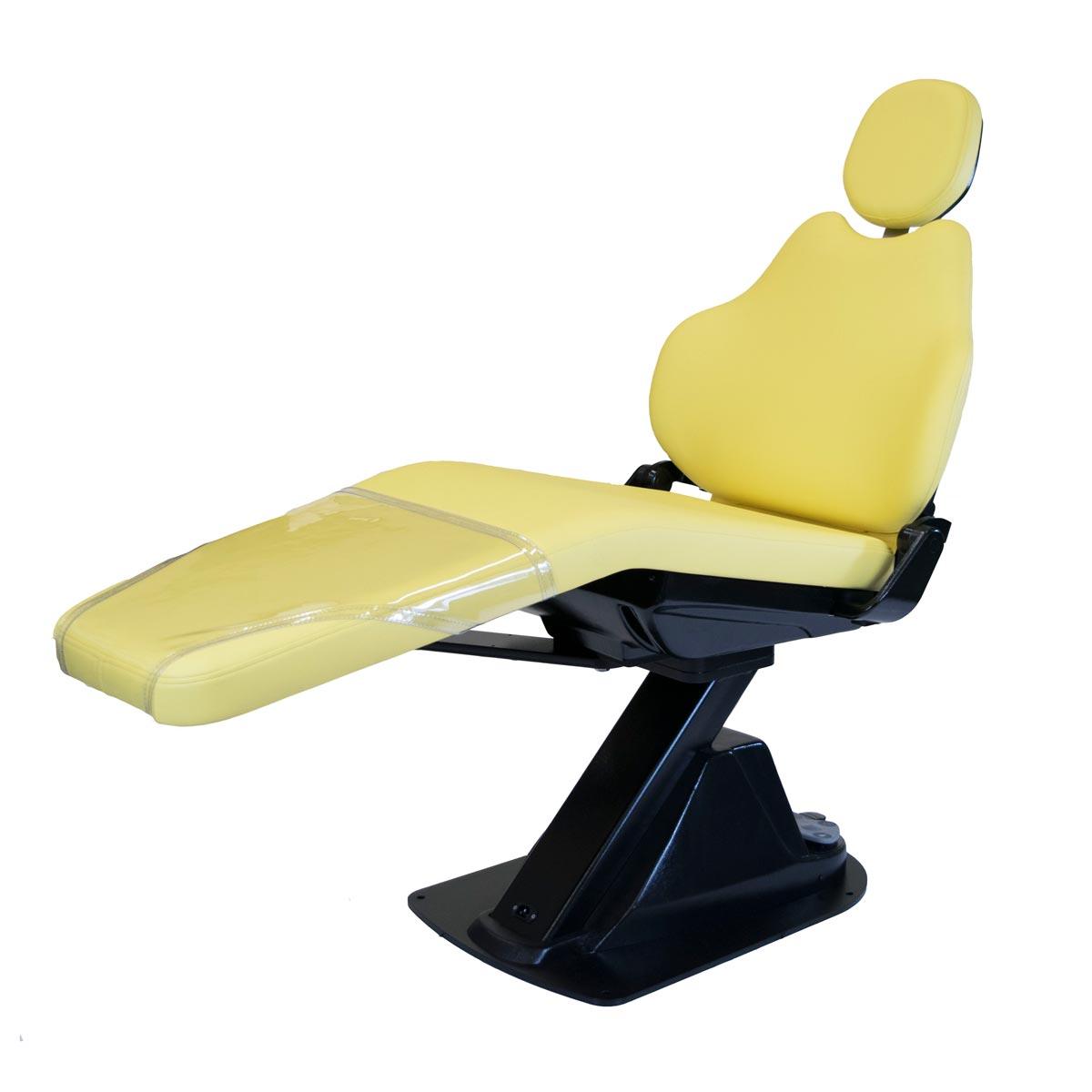

The M3000FB features a fixed pedestal base with Boyd’s programmable foot control.
Standard Features:
- Fixed pedestal base
- Ergonomically designed winged back
- Contoured one-piece seat section
- Choice of non-articulating FH-series headrest
- Snap-on removable Boltaflex™ Vinyl Upholstery containing Prefixx™ protective finish
- Choose from over 100 colors available
- Standard foam padding
- Choice of 3 upholstery stitching patterns
- Clear plastic foot protector cover
- Two-color toe section and headrest*
- Integrated full-function, programmable foot control
- Three (3) operator designated pre-set positions
- Auto “return to home” switch
- All-steel frame construction
- Low-voltage DC motor actuator
Options/Upgrades:
- Chair-mounted Exam Light (see our C300 LED Exam Light)
- Articulating Headrest
- Ultraleather Pro™ upholstery
- Lever-release Armrest
- Swivel base (41.5-degree rotation from center)
- Custom embroidered toe section (vinyl upholstery only)
- Boyd Booster Seat
| Model # | Part # | Description |
|---|---|---|
| M3000FB | 100-3000 | Power Back, Fixed Base, Programmable, F/C, Putty |
| M3000FB | 100-3000B | Power Back, Fixed Base, Programmable, F/C, Black |
| Arm Assembly, Set | 68-2200 | Arm Assembly, Putty |
| Swivel Base | 95-0532 | Swivel, M - and E- Series Patient Chairs, Putty |
| Swivel Base | 95-0532B | Swivel, M - and E- Series Patient Chairs, Black |
WARNING: This product can expose you to chemicals including cumene, nickel
compounds and wood dust, which are known to the state of California to cause cancer;
di(2-ethylhexyl)phthalate, which is known to the state of California to cause cancer,
developmental
toxicity and male reproductive toxicity; and lead and lead compounds, which are known to the
state
of California to cause cancer, developmental toxicity, male reproductive toxicity, and female
reproductive toxicity. For more information, go to www.P65Warnings.ca.gov.
| SPECIFICATIONS & FEATURES | M300X | M3000FB | M3000LC | M3010FB | M3010LC | E530 | E535 | PB4000 | PB4001 | ||
| ● STANDARD FEATURE ●● OPTIONAL FEATURE | |||||||||||
| Weight Capacity (lbs) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 350 | 350 | 350 | 350 |
| Minimum Seat Height (At the highest point of seat frame) | 25.5" | 25.5" | 22" | 19.5" | 25.5" | 22" | 19.5" | 19" | 19" | 27.5" | 27.5" |
| Maximum Seat Height (At the highest point of seat frame) | 25.5" | 25.5" | 30" | 33" | 27.5" | 30" | 33" | 26" | 26" | 27.5" | 27.5" |
| Base Plate Width | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 20" | 20" | 26" | 26" |
| Length | 70.5" | 70.5" | 70.5" | 71.5" | 63.5" | 63.5" | 66.75" | 58" | 58" | 76.5" | 76.5" |
| Power Requirements (Amps) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 8 | |||
| # of Motorized Functions | 1 | 1 | 2 | 2 | 1 | 2 | 2 | 1 | |||
| 220vAC Convertible | ● | ● | ● | ● | ● | ●● | ●● | ||||
| Steel Frame Construction | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Frame/Trim Colors (Putty or Black) | ● | ● | ● | ● | ● | ● | ● | ● | Black Only | ● | ● |
| Headrest - Non Articulating | ● | ● | ● | ● | ● | ● | ● | ●● | ●● | ●● | ●● |
| Headrest - Single Articulating | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ● | ● |
| Headrest - Dual Articulating | ● | ● | |||||||||
| Choice of Standard Headrests | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Arm Rests | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ● | ● | N/A | N/A |
| Programmable Foot Control | ● | ● | ● | ● | ● | ||||||
| Programmable Foot Control - Detachable | ●● | ●● | |||||||||
| Programmable Hand Control on Chair Back | ● | ● | |||||||||
| Auto Return to Home | ● | ● | ● | ● | ● | ● | ● | ||||
| Safety Stop Feature | ● | ● | ● | ● | ● | ● | ● | ||||
| 120vAC Electrical Outlet | ● | ● | ● | ● | ● | ● | ● | ●● | ●● | ||
| Base - Cantilever Style (14" Stroke) | ● | ● | |||||||||
| Base - Vertical Column (7.9" Stroke) | ● | ● | ● | ||||||||
| Base - Manual Pump (7" Stroke) | ● | ||||||||||
| Base - Electric Hydraulic (7.5" Stroke) | ● | ||||||||||
| Seat Swivel (360 of Travel) | ● | ● | |||||||||
| Seat Swivel (83 of Travel) | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||||
| Upholstery - Boltaflex Vinyl /Standard Foam | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Upholstery - Ultraleather Pro™ | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||
| Upholstery - Choice of Stitching Styles | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Upholstery - Detachable | ● | ● | ● | ● | ● | ● | ● | ||||
| Memory Foam | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||
