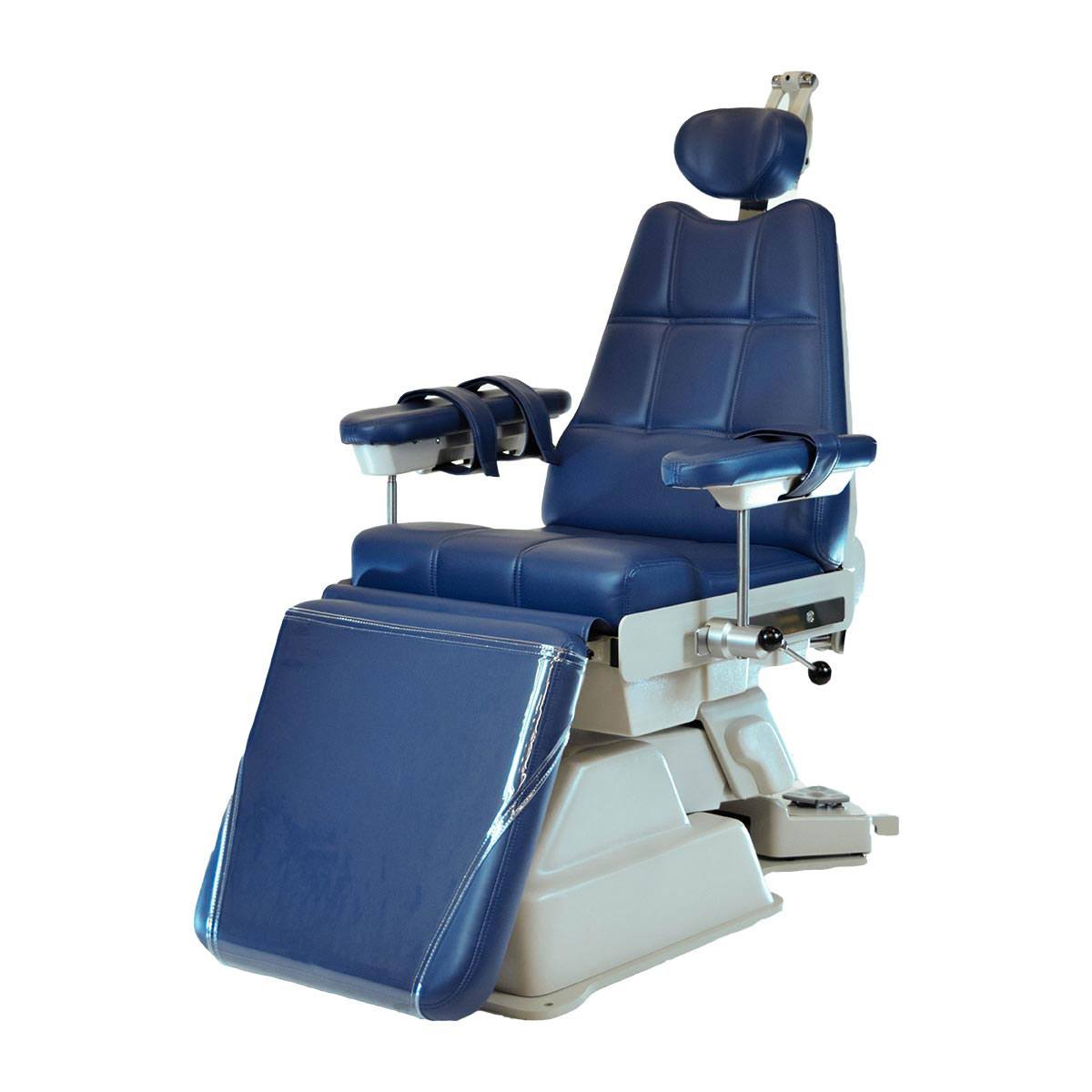

The S2614 Surgical Chair is recognizable for its durable and modern design. With an array of customization options, this chair will fit perfectly into your oral surgery or medical office, where you can rely on it's performance and reliability for years to come.
Standard Features:
- Ergonomic thin tapered style back
- Two-piece seat with independent control of toe section
- Cantilevered style lift base with 14" of vertical travel
- Snap-on/Snap-off upholstery
- Durable all steel frame
- Independent powered seat tilt for trendelenburg positioning
- Flat table positioning
- Quad-function foot control
- Low-voltage DC motors
- Duplex outlet
- Automatic "Return to Home"
- Three (3) programmable settings
- Boyd's "On Track" and/or compensating arm options
- Dual articulating headrest
- Emergency power lock-out switch
- Foot protector
- Body restraint strap
General Product Information
Frame Material: Welded steel with powder coated finish
Upholstery:
- Standard - Boltaflex Grand Sierra™
- Upgrade – Ultraleather Pro™
Movement:
- Base - Cantilevered Lift - 14.00" (355mm)
- Back - Electric Actuator
- Tilt - Electric Actuator
- Toe - Electric Actuator
Net Weight: 275 lbs (125 kg)
Internal Voltage:
- Chair operates at 24vDC
- Low voltage Actuators
- Microprocessor controlled
Input Voltage:
- 115vAC 60Hz 10A (Domestic)
- 230vAC 50-60 Hz 7A (International)
Protection: Class: I
Electrical Shock: Type: B
Liquid Protection: Ordinary equipment (IPXO)
Flammable Gases: Not suitable for use in the presence of flammable gases or where such gases may accumulate in concentration. (Closed Space)
Operation Mode: Intermittent duty cycle 10% - 2 minutes On / 18 minutes Off (Indoor use only)
Operating Environment:
- Temperature: 5°C to 40°C (41°F to 104°F)
- Relative Humidity: 20% to 90% @ 30° C - Not condensing
- Atmospheric Pressure: 97kPa
Storage Environment:
- Temperature: -10°C TO 50°C (14° F TO 122° F)
- Relative Humidity: 20% to 90% @ 30° C - Not condensing
- Atmospheric Pressure: 45 to 115kPa
Weight Capacity: 500 lbs (228 kg) Subject to normal weight distribution
Note: Do not sit on back, foot end of seat or adjustable toe section. These sections are not designed to support the full weight of patient. Do not lift or slide chair using back section or seat upholstery.
Warning: Do not modify this equipment without authorization from Boyd Industries, Inc.
| Model # | Part # | Description |
|---|---|---|
| S2614 | 100-2694 | Quad Function Surgery Table, Flat Plate with Corded Foot Control, Putty Frame |
| S2614 | 100-2694B | Quad Function Surgery Table, Flat Plate with Corded Foot Control, Black Frame |
