UL Certification
FDA Approval

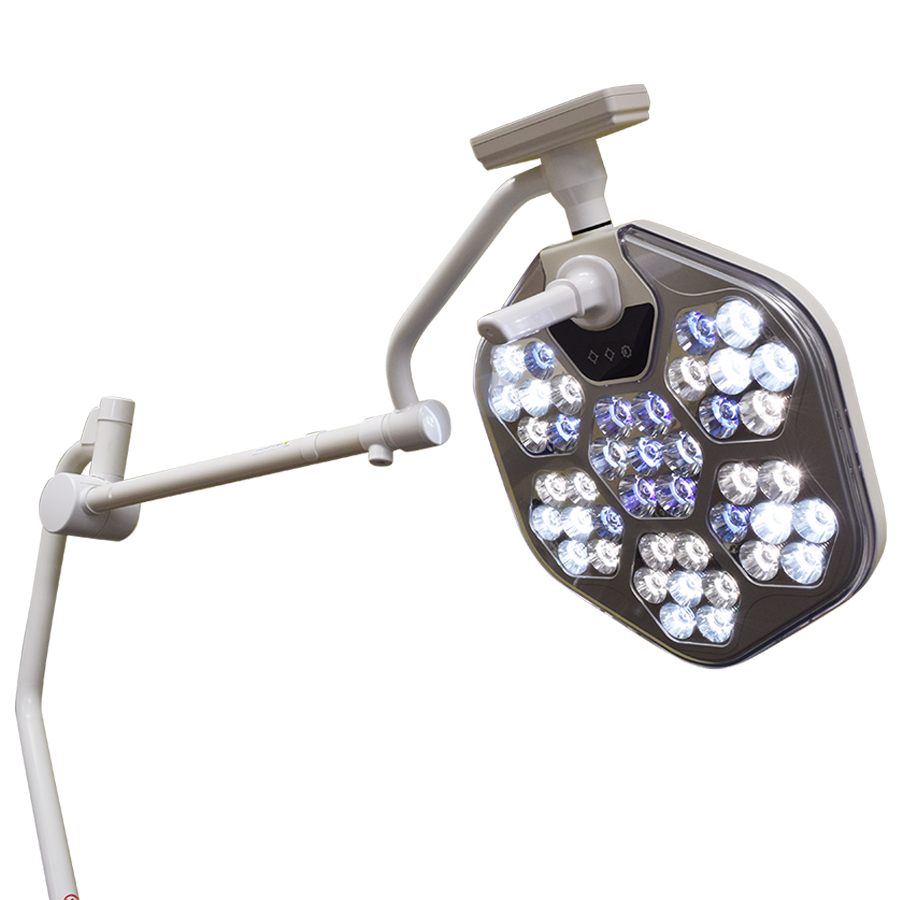

Adopting the latest technology, Boyd’s S300 Surgery Light features crystal clear lighting for use in dental surgery procedures. The high Color Rendering Index with adjustable intensities allows the surgeon to select the optimal setting for best visibility. The light head housing and touch screen controller are easy to disinfect. Download the AndroidTM app to operate remotely!
FDA-Listed/UL Approved

  • Three Illumination Modes - Select the optimal lighting depending on procedure performed.

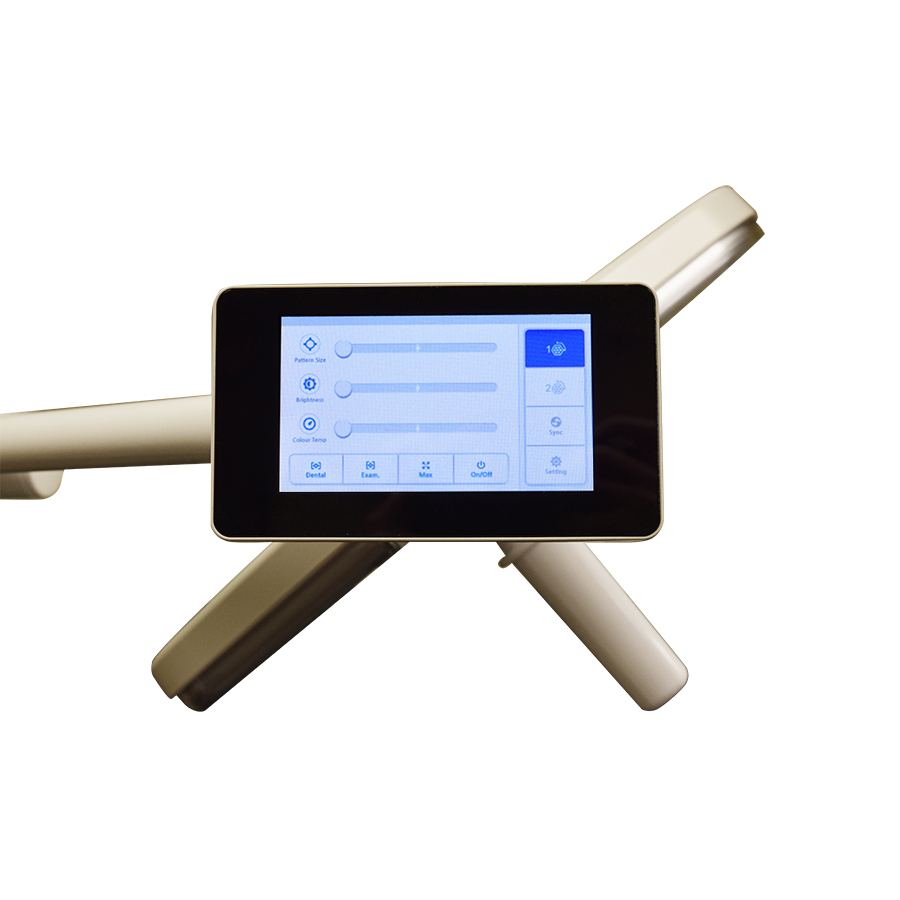

  • LCD Touch Pad Display Control Unit – Easy one touch operation of all settings.
  • Wireless Remote Operation – Download the Android TM app on a compatible device to operate all features remotely.
  • Long life, Low Power Consuming, Cool LED Light Technology
    • High Color Rendering Index (CRI) - Boyd suggests high CRI of Ra9 5which may realize clearer and nature-like color. It helps to reduce eye fatigue compared with lower CRI lights.
    • Selectable Color Temperature - 3 color temperatures (3,800K/4,300K/4,800K) ranges to find the most suitable and comfortable light color.
    • Adjustable Light Field Size - 3 field sizes ranging from 15cm x 9cm in dental mode up to 25cm in surgery mode.
    • Variable Intensity [Brightness] - Adjustable from 5000 up to 130,000 lux
    • LED Rated Life - 60,000 hours
  • Detachable Handle -Can be sterilized by autoclave without damage.

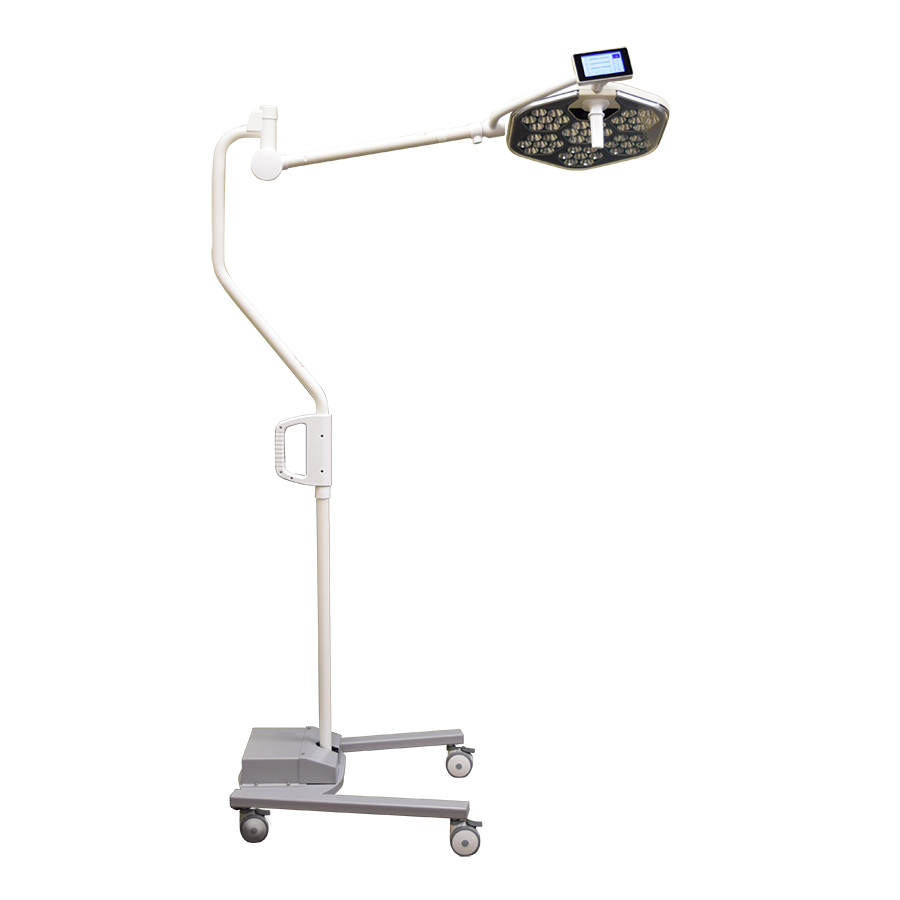

  • Choice of Mounting Configuration –Ceiling or Mobile Mounting. [Battery back-up available with Mobile unit]

Quote Contact Information

Technical Specifications

Parameter

Mode

Mode

Mode

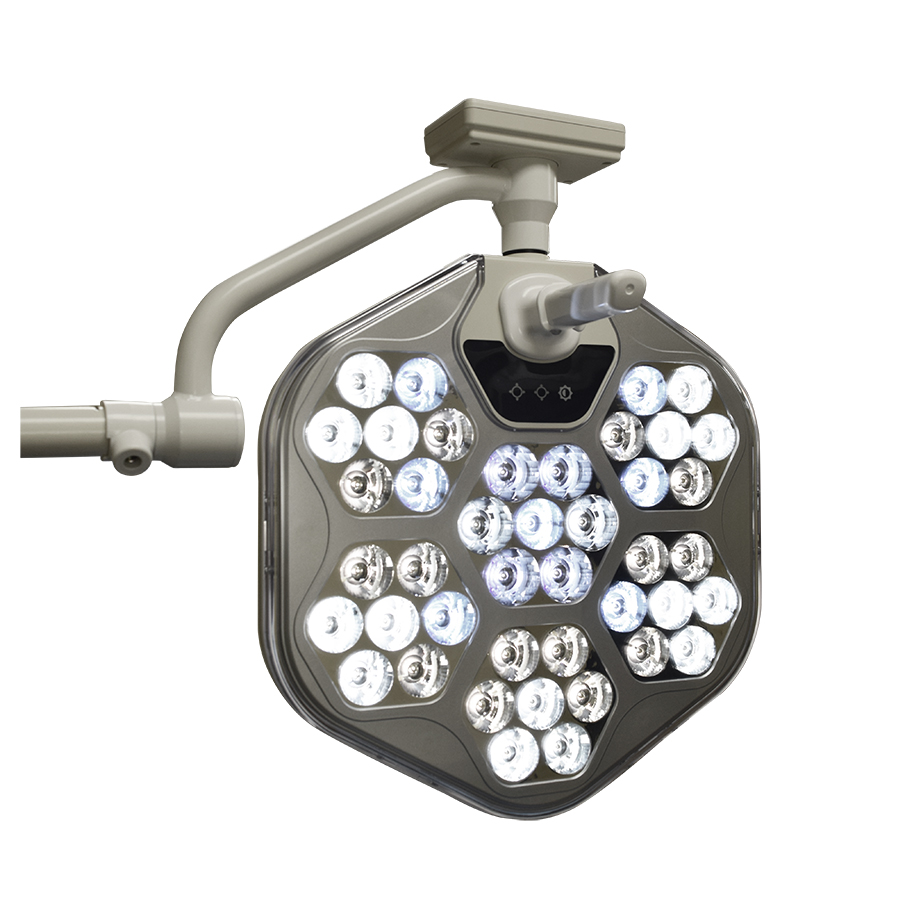

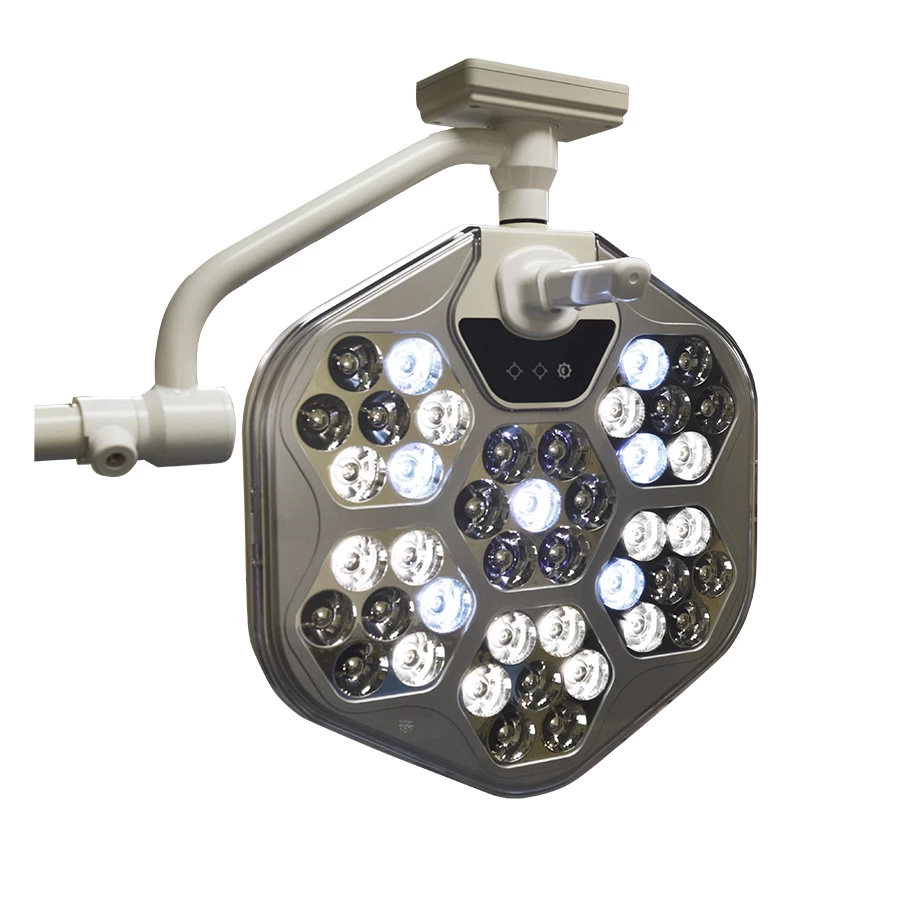

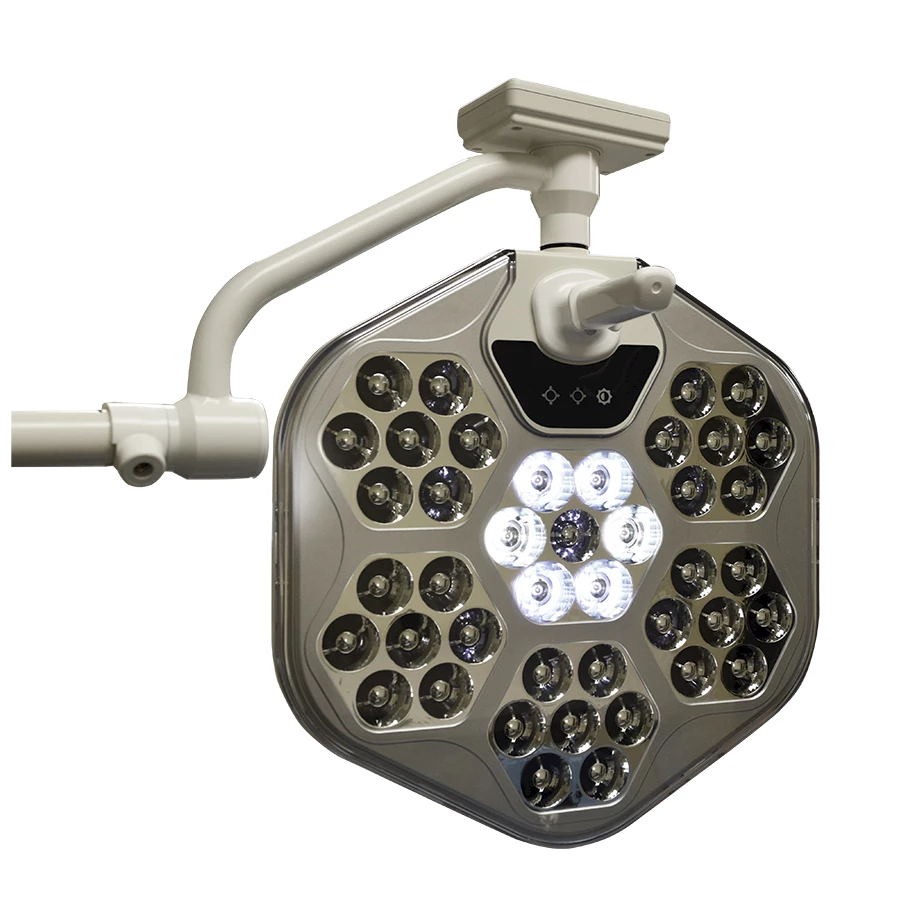

 Maximum (Surgery)ExaminationDental
LEDs Illuminated42/6 clusters21/6 clusters6/1 cluster
Intensity (Lux)130,000up to 60,000up to 30,000
Light Field (cm)15 to 251515 x 9
Light Field ShapeCircularCircularOval
Focal Distance (cm)--100
Color Temperature (K)3800/4300/48003800/4300/48004800
Color Rendering Index (Ra)969695
Shadow Dilution (%)up to 100%--
Light Head DimensionDiameter- 16 inchesDiameter- 16 inchesDiameter- 16 inches



Model #Part #Description
S300 Surgery Light600-4525WS300 Surgery Light: Ceiling Mount, White
S300 Surgery Light600-4526WS300 Surgery Light: Mobile, White
