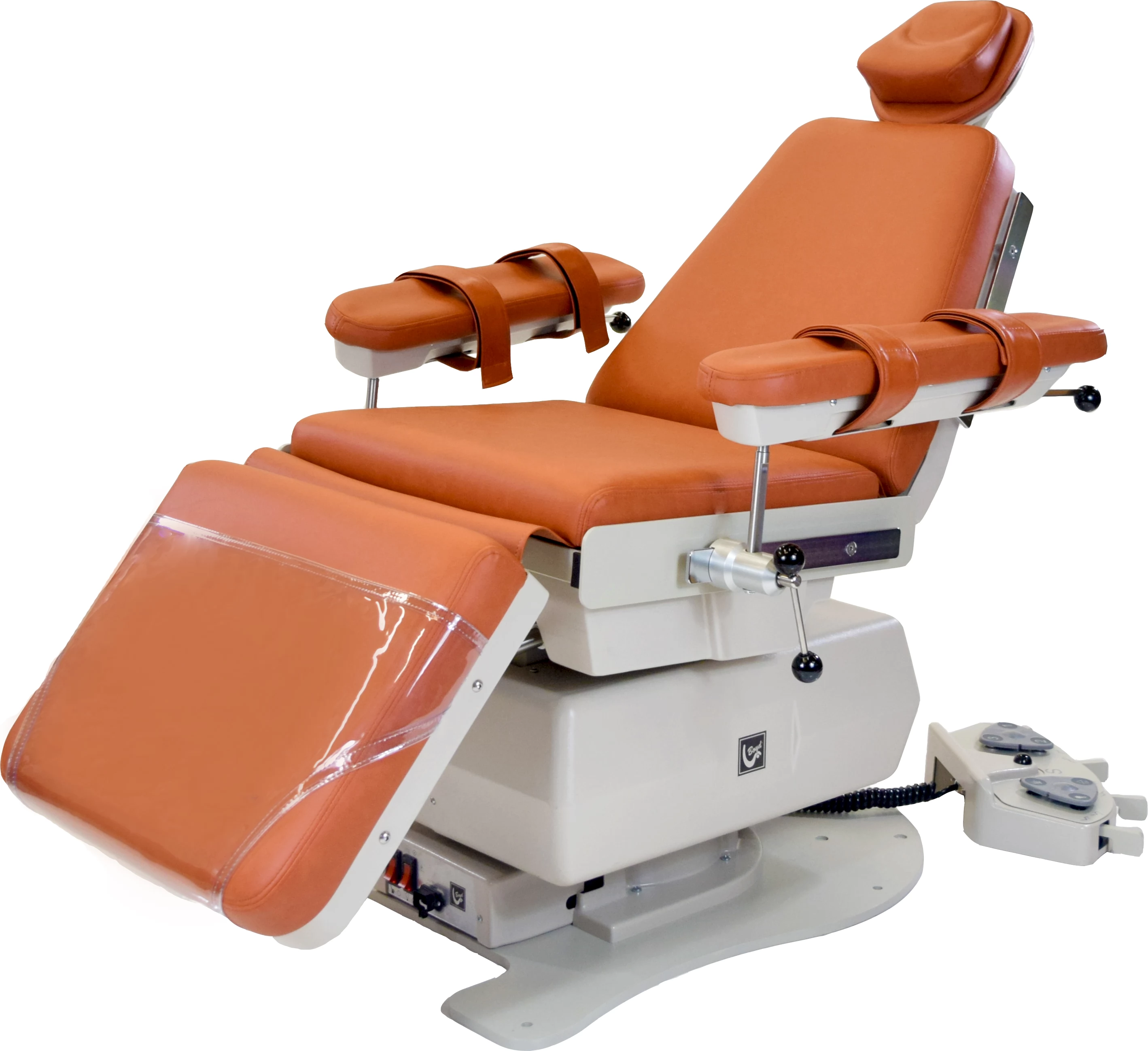

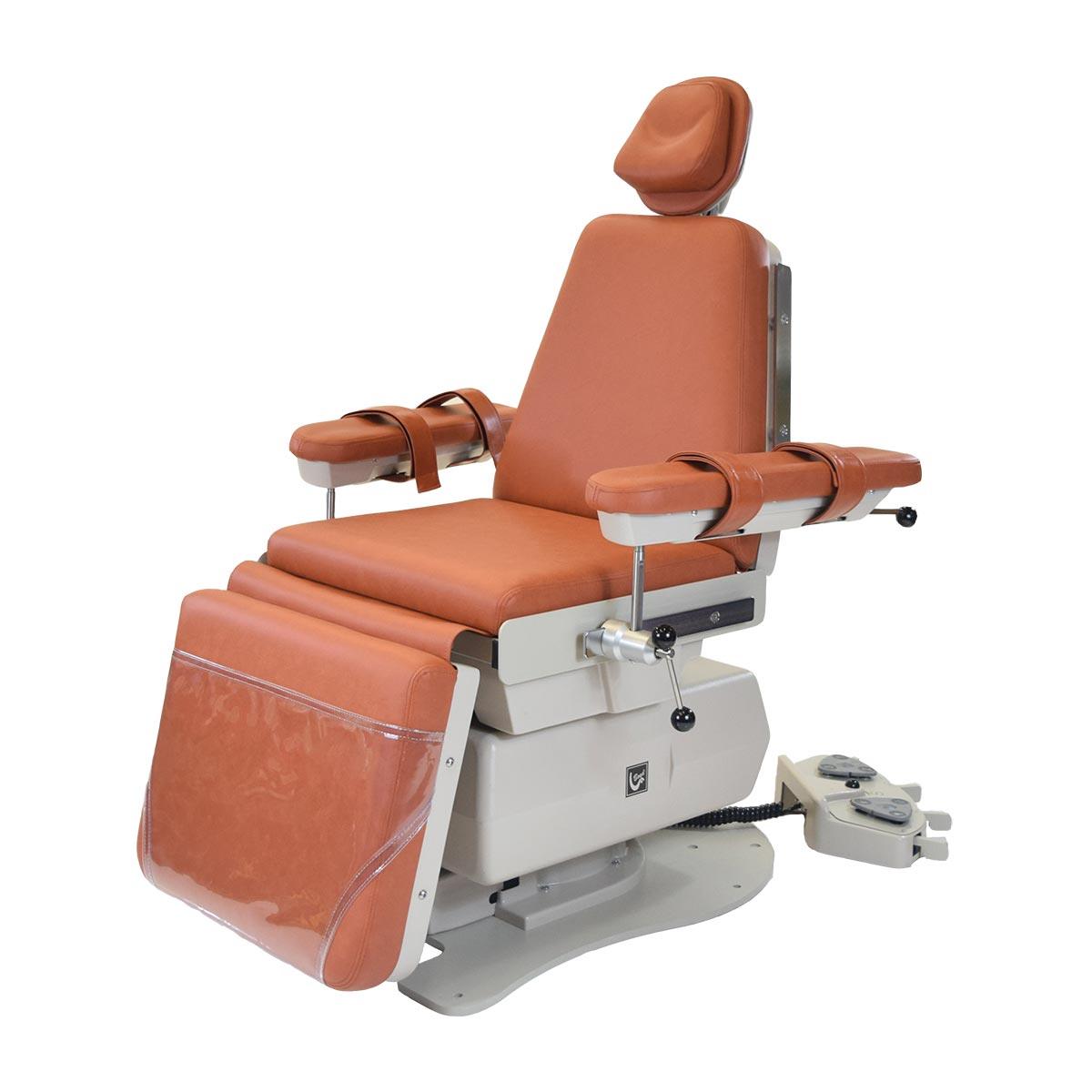

Boyd’s flagship S2601 Surgical table is the profession’s benchmark for oral surgery.
Standard Features:
- Ergonomic thin tapered style back
- Low-voltage DC motor actuators
- Motorized vertical lift base with 16" vertical stroke
- 4 independently controlled motors for back, toe, tilt and lift control
- Integrated full function foot control
- Three (3) operator designated pre-set positions
- Auto “return to home” switch
- Emergency stop and chair “lock-out” features
- Integrated medical grade duplex 115vAC outlet
- Durable all steel frame

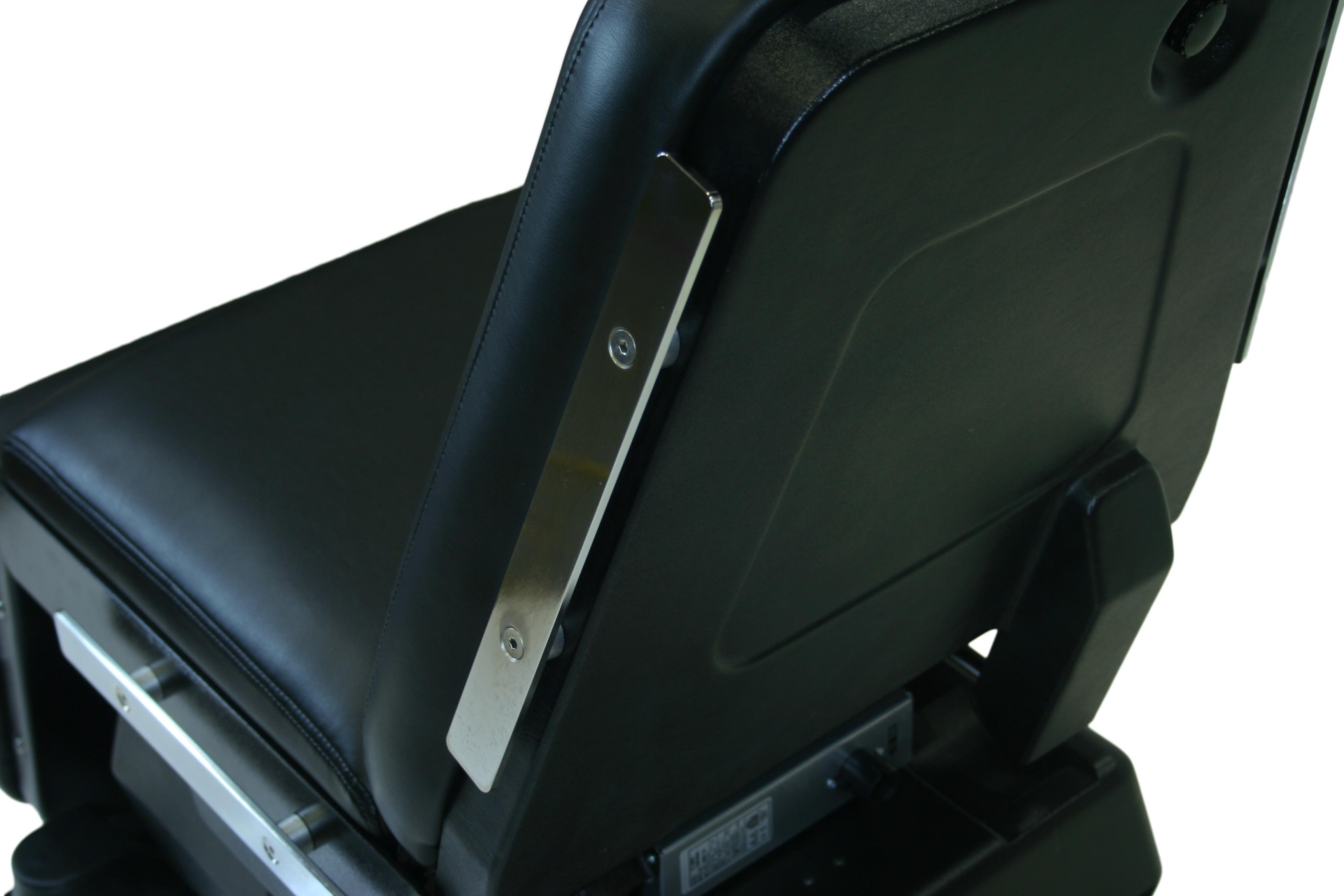

- "On-Track" Surgical Armboard/Accessory Rail System
- Choice of Dual articulating headrests
- Snap-on/Snap-off upholstery
- Foot protector
- Body restraint strap
- Choice of upholstery style
Options:
- Choice of IV and Patient Armboards
- Base swivel capable of 160° of travel

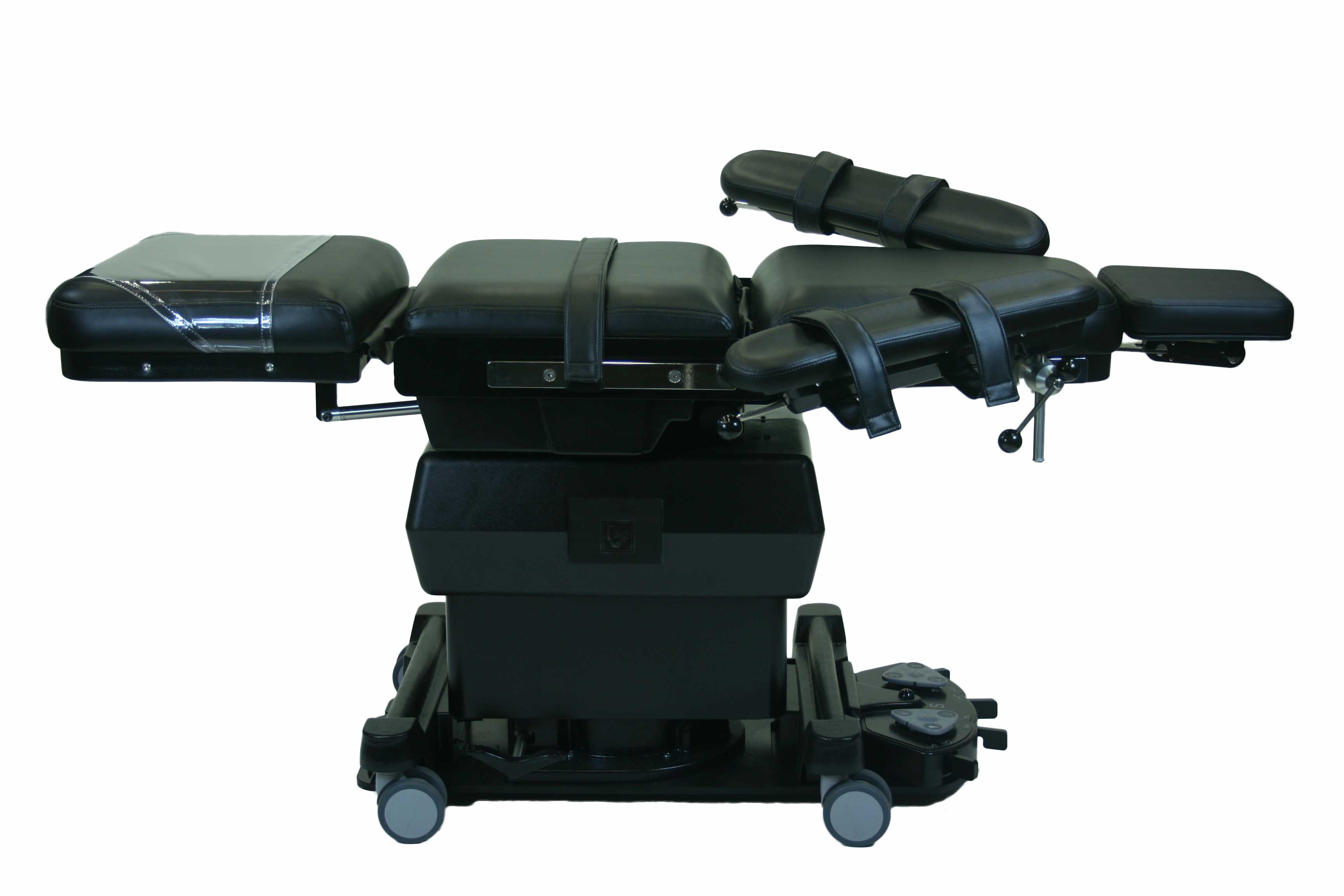

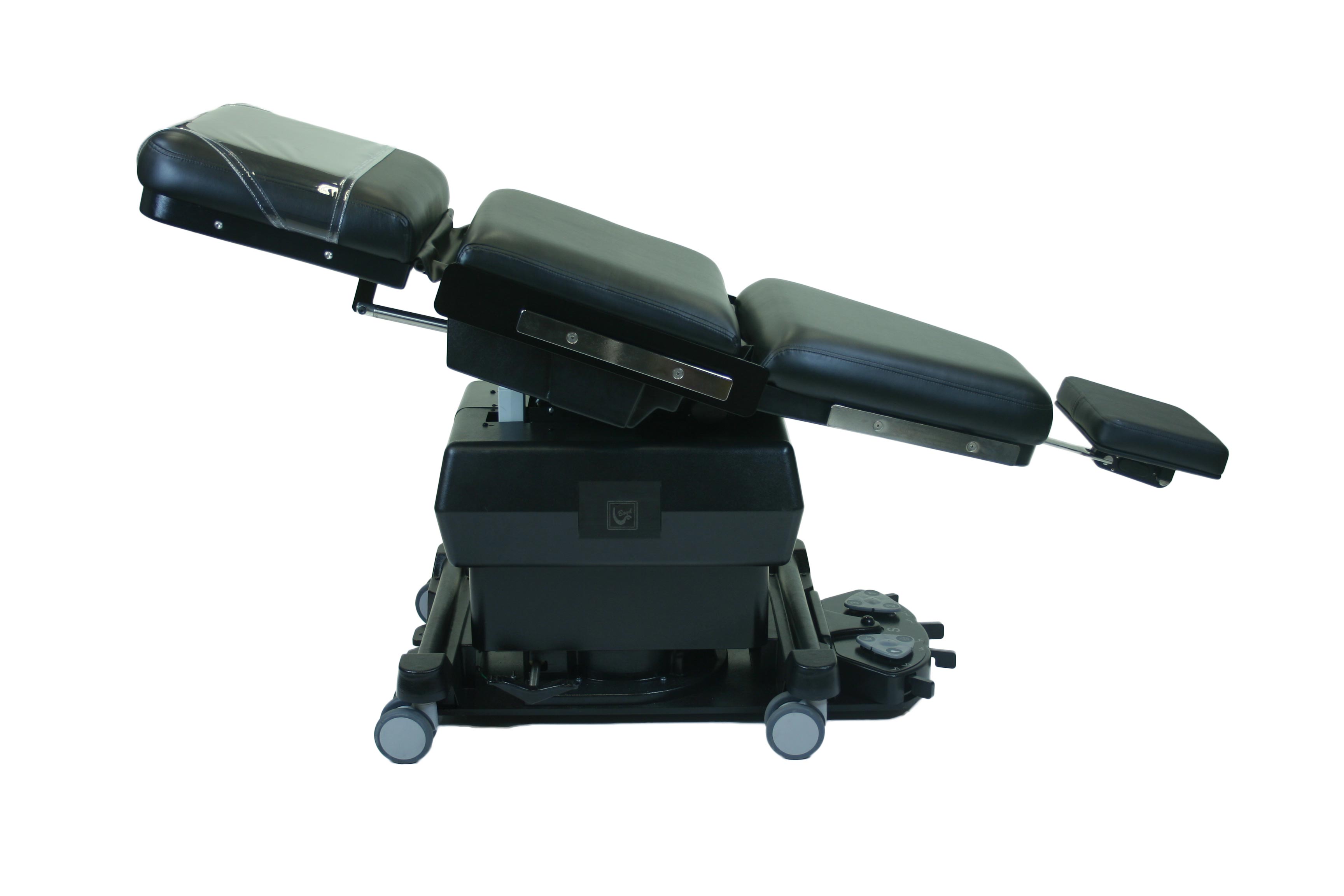

- Mobile base with manual lock mechanism
- Handheld remote controller
General Product Information
Frame Material: Welded steel with powder coated finish
Upholstery:
- Standard - Boltaflex Grand Sierra™
- Upgrade – Ultraleather Pro™
Movement:
- Base - Cantilevered Lift - 15.81" (402mm)
- Back - Electric Actuator
- Tilt - Electric Actuator
- Toe - Electric Actuator
Net Weight:
- Standard: 334 lbs (151.5 kg)
- Swivel: 372 lbs (168.7 kg)
- Mobile: 340 lbs (154.2 kg)
Internal Voltage:
- Chair operates at 24vDC
- Low voltage Actuators
- Microprocessor controlled
Input Voltage:
- 115vAC 60Hz 10A (Domestic)
- 230vAC 50-60 Hz 7A (International)
Protection: Class: I
Electrical Shock: Type: B
Liquid Protection: Ordinary equipment (IPXO)
Flammable Gases: Not suitable for use in the presence of flammable gases or where such gases may accumulate in concentration. (Closed Space)
Operation Mode: Intermittent duty cycle 10% - 2 minutes On / 18 minutes Off (Indoor use only)
Operating Environment:
- Temperature: 5°C to 40°C (41°F to 104°F)
- Relative Humidity: 20% to 90% @ 30° C - Not condensing
- Atmospheric Pressure: 97kPa
Storage Environment:
- Temperature: -10°C TO 50°C (14° F TO 122° F)
- Relative Humidity: 20% to 90% @ 30° C - Not condensing
- Atmospheric Pressure: 45 to 115kPa
Weight Capacity: 500 lbs (228 kg) Subject to normal weight distribution
Note: Do not sit on back, foot end of seat or adjustable toe section. These sections are not designed to support the full weight of patient. Do not lift or slide chair using back section or seat upholstery.
Warning: Do not modify this equipment without authorization from Boyd Industries, Inc.
| Model # | Part # | Description |
|---|---|---|
| S2601 | 100-2604 | 110 Volt, Standard, Putty Frame |
| S2601 | 100-2604B | 110 Volt, Standard, Black Frame |
| S2601 | 100-2650 | 110 Volt, Swivel, Putty Frame |
| S2601 | 100-2650B | 110 Volt, Swivel, Black Frame |
| S2601 | 100-2652 | 110 Volt, Mobile Base, Putty Frame |
| S2601 | 100-2652B | 110 Volt, Mobile Base, Black Frame |
WARNING: This product can expose you to chemicals including cumene, nickel
compounds and wood dust, which are known to the state of California to cause cancer;
di(2-ethylhexyl)phthalate, which is known to the state of California to cause cancer,
developmental
toxicity and male reproductive toxicity; and lead and lead compounds, which are known to the
state
of California to cause cancer, developmental toxicity, male reproductive toxicity, and female
reproductive toxicity. For more information, go to www.P65Warnings.ca.gov.
Product Literature
Templates
- S2601 S2605 Surgery Table | R-4339-E.dwg
- S2601 S2605 Surgery Table | R-4339-E.pdf
- S2601 Surgery Table | R-4339-E-ARCH.dwg
- S2601 Surgery Table | R-4339-E-ARCH.pdf
- S2601 S2605 Surgery Table - Swivel Model | R-4340-C.dwg
- S2601 S2605 Surgery Table - Swivel Model | R-4340-C.pdf
- S2601 S2605 Surgery Table - Swivel Model | R-4340-C-ARCH.dwg
- S2601 S2605 Surgery Table - Swivel Model | R-4340-C-ARCH.pdf
